Anyone have a vacuum line schematic for a 2004? I have some loose ones I have no idea where they go.
Vacuum line diagram 2004
- Thread starter toofast_28
- Start date
which ones are loose?
i don't have a diagram, but i know where they all go
i don't have a diagram, but i know where they all go
toofast_28
Full Access Member
I'll take pictures in the morning and post.
I know a couple are the hard plastic lines that run front to rear, I think 1 of those goes to the valve cover breather.
I know a couple are the hard plastic lines that run front to rear, I think 1 of those goes to the valve cover breather.
toofast_28
Full Access Member
These are what I have that I don't know where/what goes to them. I'm assuming some of it is evap system related. The one on the valve cover points inward but there's nothing there to connect to (right side is connected to a hard plastic line)
This is in a street rod, so if I can cap some or whatever, that's fine too.

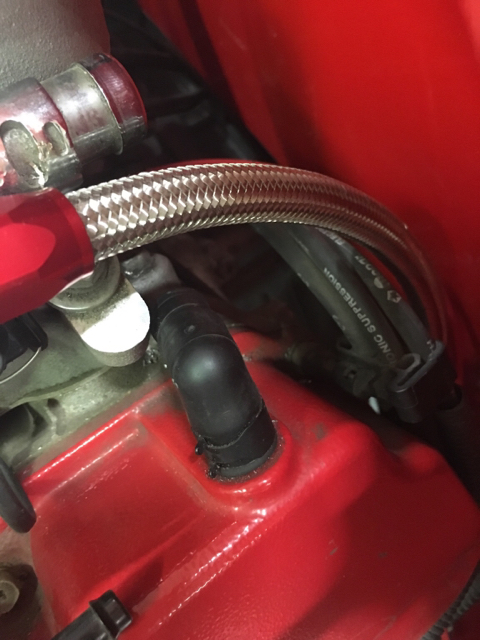

top left photo, part of the PCV valve system, old school speak, goes to a valve.

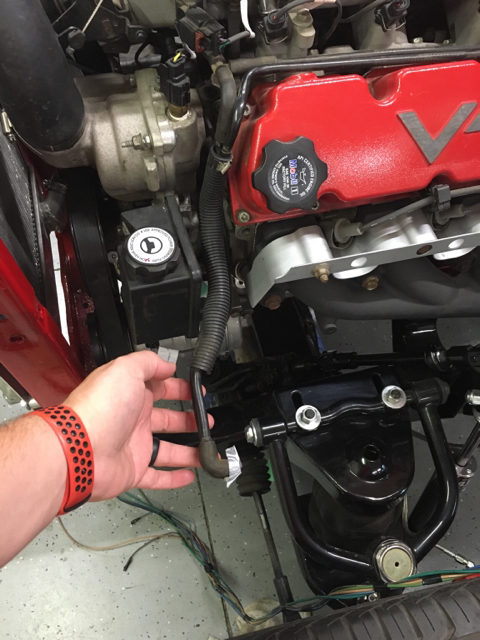

top center photo,EVAP

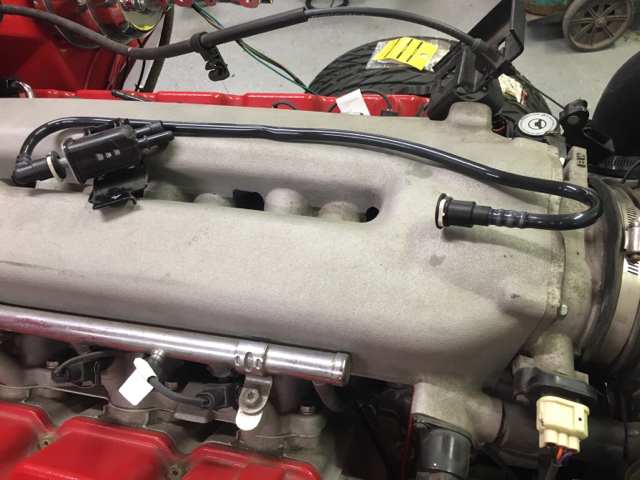

top right, crank case elow

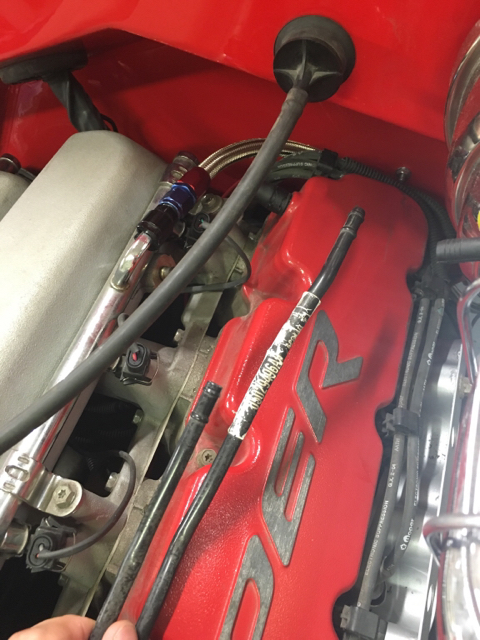

lower left, brake booster nipple

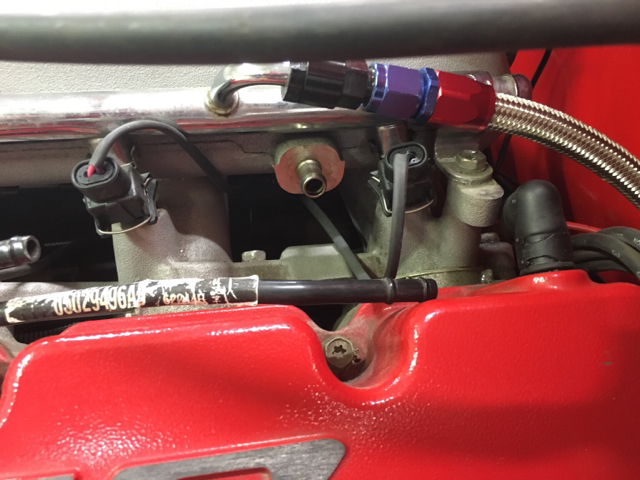

lower right photo, i think its a part of the top left photo
top center photo,EVAP
top right, crank case elow
lower left, brake booster nipple
lower right photo, i think its a part of the top left photo
toofast_28
Full Access Member
The computer/harness no longer has the evap, so I'll plug those, connect the valve cover to the other one with a T (believe the other runs up to throttle body already), connect the brake booster, cap anything else then hope it idles ok. Unless anyone thinks this plan won't work?
toofast_28
Full Access Member
Will it just turn a service engine light on if it's not turned off? I had it flashed by the same company that built the harness, so I'm hoping since they didn't include the EVAP wiring in the harness that they also turned it off in the ecm. Thanks for the help
toofast_28
Full Access Member
Also, anyone know what I need to convert the power steering fitting to an AN type fitting?
if you have no evap system, you should just be able to plug the hole in the bottom of the throttle body. all those small ones are evap/purge solenoid related.
the line running under the intake manifold goes to the rear of the passenger valve cover (there's a port behind the throttle body). there's a second line that is the same size from the driver's side that goes into the air intake.
the exposed nipple (haha, i said nipple) in the back of the intake goes to the brake booster.
i don't know what part to tell you to get for the PS pump, other than JTSVP sells a complete kit and he may be able to get you just the fitting.
the line running under the intake manifold goes to the rear of the passenger valve cover (there's a port behind the throttle body). there's a second line that is the same size from the driver's side that goes into the air intake.
the exposed nipple (haha, i said nipple) in the back of the intake goes to the brake booster.
i don't know what part to tell you to get for the PS pump, other than JTSVP sells a complete kit and he may be able to get you just the fitting.
Chuck B
Full Access Member
I took the parts in to my local speed shop and they hooked me up. This was LONG before Tony or anyone else offered replacement lines. Those OEM fittings are garbage.
Back on topic...my hard plastic vacuum line from/to brake mstr has become brittle. Anyone know of replacement? Trying to keep stock look....
toofast_28
Full Access Member
Tony sent me the PS fitting, already on the truck.
No idea on the brake booster hose. I used black rubber that came with the new master cylinder.
No idea on the brake booster hose. I used black rubber that came with the new master cylinder.
are they still available new? surprisingly, there's some oddball things still available
