Need help getting gen III engine running in project

[toofast_28]

I have a 2004 srt-10 powertrain in my 49 Chevy pickup build. Trying to get it running before I disassemble before paint. Anyone have a tip sheet on what I need to get it running? I have an 04 engine and 6 speed complete with factory engine harness and ECU. No clue where to even start besides power and fuel.



[ViperPete]

Probably should start with connecting all the wiring to the engine and tranny.



[shorty]

"No Clue" tow it to one of our specialty guys advertised below. If you really have no clue as to how to get it running you best seek the help of an expert---in person. :chain:



[toofast_28]

All the wires are connected, there's no lead for battery power though.



[toofast_28]

I'm on tapatalk so I don't see a list of specialty guys. Where would I find that list?



[VPRPWRD]

I'm on tapatalk so I don't see a list of specialty guys. Where would I find that list?

It's in the vendor section. You'd be looking at JMB Performance, JTSVP or V1R. Are you saying your harness did not have the battery cables with it?



[Viperidae]

I'm on tapatalk so I don't see a list of specialty guys. Where would I find that list?

Where are you located?



[toofast_28]

The vehicle harness has battery cables, I'll have to look at the engine harness again to see if I overlooked the battery leads. Hotwireauto.com has a standalone street rod harness that provides all the correct connections and uses factory ECU. Looking at that while I research a few other options.



[toofast_28]

Where are you located?

Davenport, Iowa



[Slitherbeast]

You will need to hookup the battery correctly. Find a picture of the underhood of the 04 SRT 10 and see where the cables attach. Ground would go to the chassis and the engine. The power will go to the fusebox and the starter. First thing is to get it to spin. Then to check for fuel pressure a the fuel rails. should be 58-60 psi. Check it with a gauge at the schrader valve on the rightside fuel rail.



[toofast_28]

I'm missing the third plug into the ECU, I'm thinking that's still part of the chassis harness and provides the power hook ups. I have the chassis harness still so I'll look for that tonight. Engine harness only has 2 of the 3 plugs for the ECU. Fuel I am running a 99 vette filter/regulator and a walbro 255gph (says it pushes 85 psi) pump. That filter/regulator combo is 58 psi rated but tests show 60 psi on some. Factory regulator specs for the srt10 truck say 58 psi. I'll still check at the rails. If I can't find the 3rd plug I'll buy the hotwireauto harness, it has all 3 plugs. Any suggestions where to pull an oil pressure reading, no gauges installed yet and don't want to hurt it trying to get it running.



[NukeGM/Ford]

justin at JMB outside st louis would be the closest to you if you had questions or need a patch/fix for something



[tim simmons]

I just did a swap into my roadrunner. The easiest way I found was to use a complete wiring harness from the key to the tail light. Especially if your doing that kind of swap into a older car. Your gonna need all the wiring anyway, lights ect.



[toofast_28]

Tim, did you do a v10? Have a source for that harness?



[toofast_28]

Found the third plug for the ECU in the body harness (knew I kept that for something). I think the plan now is to plug it all in with factory fuse box/harness to power it up and see if it fires. Then final assembly will be with a "hot rod harness" to simplify it. Anyone know if I'll get it to fire without the body control module?



[toofast_28]

Anyone have a full wiring schematic for a 2004 RC? Trying to figure out what wires I need from the factory harness.



[Slitherbeast]

Start with ALL the Wires! Then determine which ones are neccessary and extend them to suit your required placement. Last thing you want is a mangled harness! Get it running first. then elliminate.



[VPRPWRD]

Anyone have a full wiring schematic for a 2004 RC? Trying to figure out what wires I need from the factory harness.

I have access to connector pinouts and wiring diagrams for everything. It will take me a significant amount of time to post it all here.



[toofast_28]

I have access to connector pinouts and wiring diagrams for everything. It will take me a significant amount of time to post it all here.

Would it be less time consuming to email? Or time consuming either way? I think all I really need is a wiring diagram of the 3rd plug into the ECU (comes from body harness, believe it supplies power/gauges). If you're looking at the ECU with pins to the top, it's the Left plug. Other 2 plugs are engine harness only.

The more I read, I think I may end up needing the after market harness and ECU flash to get past the theft key anyways. I don't have a key/ignition or the body control module (only have stock ECU), so I'm assuming that'll be very difficult to bypass.



[VPRPWRD]

Would it be less time consuming to email? Or time consuming either way? I think all I really need is a wiring diagram of the 3rd plug into the ECU (comes from body harness, believe it supplies power/gauges). If you're looking at the ECU with pins to the top, it's the Left plug. Other 2 plugs are engine harness only.

The more I read, I think I may end up needing the after market harness and ECU flash to get past the theft key anyways. I don't have a key/ignition or the body control module (only have stock ECU), so I'm assuming that'll be very difficult to bypass.

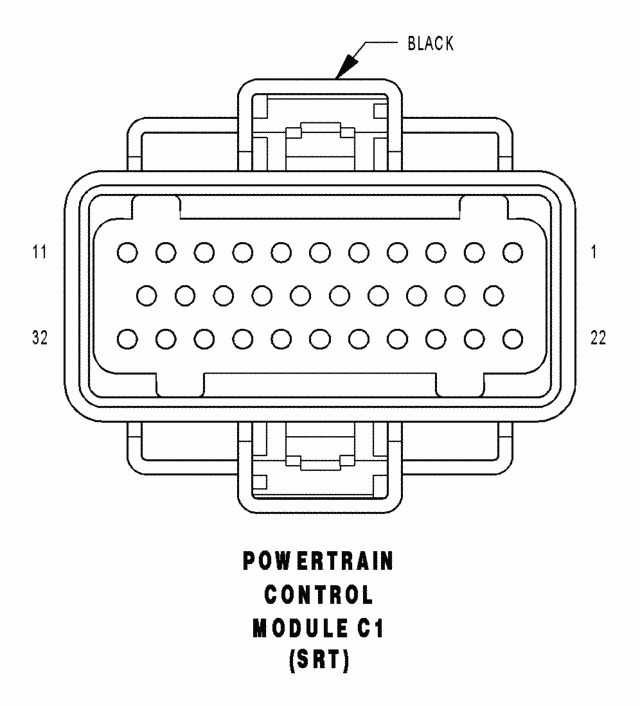

POWERTRAIN CONTROL MODULE C1 (SRT) - BLACK 32 WAY CAV CIRCUIT FUNCTION
1 K133 18DB/WT COIL CONTROL NO. 4
2 F202 18PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 K18 18DB/OR COIL CONTROL NO. 3
4 K900 18DB/DG SENSOR GROUND
5 K134 18DB/YL COIL CONTROL NO. 5
6 - -
7 K19 18DB/DG COIL CONTROL NO. 1
8 K24 18BR/LB CKP SIGNAL
9 K17 18DB/TN COIL CONTROL NO. 2
10 K60 18VT/DG IDLE AIR CONTROL NO. 2 DRIVER
11 K40 18BR/LG IDLE AIR CONTROL NO. 1 DRIVER
12 - -
13 - -
14 - -
15 K21 18DB/LG IAT SIGNAL
16 K2 18VT/OR ECT SIGNAL
17 F855 18PK/YL 5 VOLT SUPPLY
18 K44 18DB/GY CMP SIGNAL
19 K39 18VT/LG IDLE AIR CONTROL NO. 3 DRIVER
20 K59 18BR/DG IDLE AIR CONTROL NO.4 DRIVER
21 - -
22 A919 16RD FUSED B(+)
23 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
24 K41 18DB/LB O2 1/1 SIGNAL
25 K141 18DB/YL O2 1/2 SIGNAL
26 K43 18DB/LG O2 2/1 SIGNAL
27 K1 18VT/BR MAP SENSOR SIGNAL
28 - -
29 K243 18BR O2 2/2 SIGNAL
30 - -
31 Z130 16BK/BR GROUND
32 Z131 16BK/DG GROUND

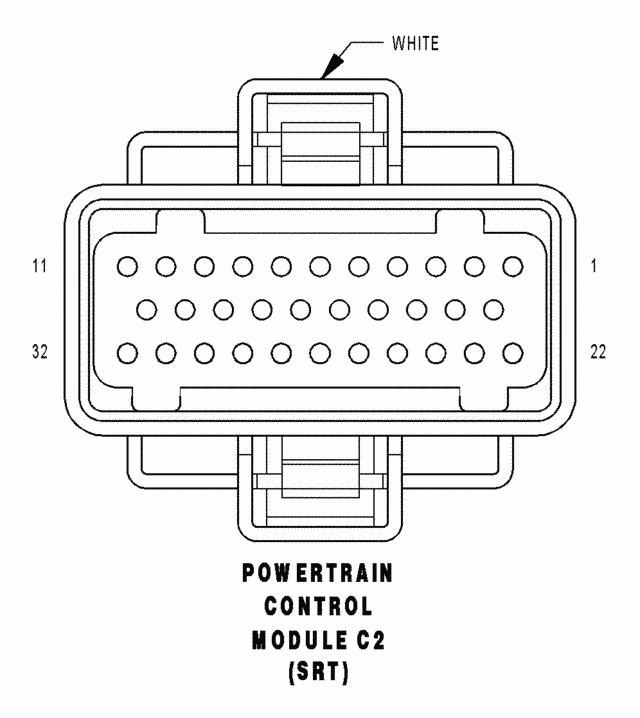

POWERTRAIN CONTROL MODULE C2 (SRT) - WHITE 32 WAY CAV CIRCUIT FUNCTION
1 - -
2 K26 18BR/YL INJECTOR CONTROL NO. 7
3 K115 18BR INJECTOR CONTROL NO. 9
4 K11 18BR/YL INJECTOR CONTROL NO. 1
5 K13 18BR/LB INJECTOR CONTROL NO. 3
6 K38 18BR/OR INJECTOR CONTROL NO. 5
7 - -
8 - -
9 - -
10 K20 18BR/GY GEN FIELD CONTROL
11 - -
12 K58 18BR/VT INJECTOR CONTROL NO. 6
13 K28 18BR/LB INJECTOR CONTROL NO. 8
14 K116 18BR/WT INJECTOR CONTROL NO. 10
15 K12 18BR/DB INJECTOR CONTROL NO. 2
16 K14 18BR/TN INJECTOR CONTROL NO. 4
17 C240 18LB/TN HYDRAULIC COOLING CONTROL FEED
18 - -
19 C918 18BK/LB A/C PRESSURE SENSOR GROUND
20 - -
21 K333 18DB/LB SOLENOID REVERSE LOCKOUT FEED
22 - -
23 G6 18VT/GY OIL PRESSURE SIGNAL
24 - -
25 - -
26 - -
27 B22 18DG/YL VEHICLE SPEED SIGNAL NO. 1
28 - -
29 - -
30 - -
31 F856 18YL/PK 5 VOLT SUPPLY
32 - -

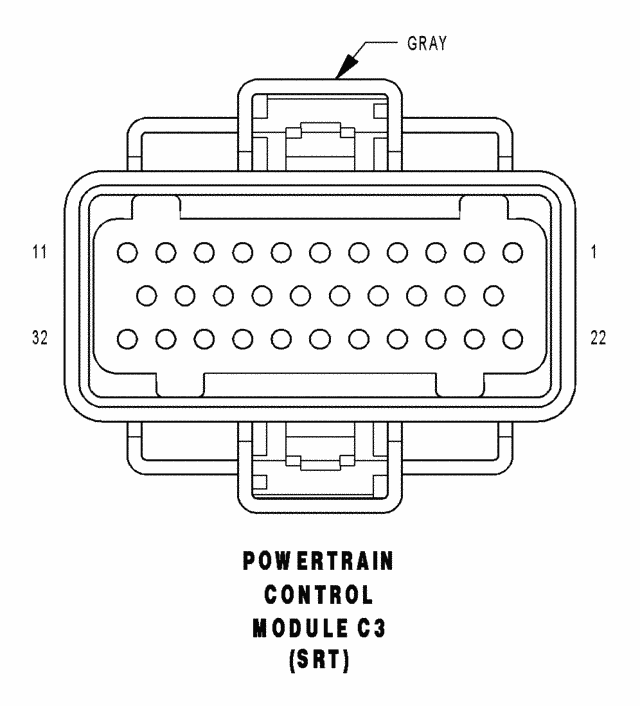

POWERTRAIN CONTROL MODULE C3 (SRT) - GRAY 32 WAY CAV CIRCUIT FUNCTION
1 C13 18LB/OR A/C CLUTCH RELAY CONTROL
2 - -
3 K51 18BR/WT ASD RELAY CONTROL
4 V36 18VT/YL S/C VACUUM CONTROL
5 V35 18VT/OR S/C VENT CONTROL
6 - -
7 - -
8 K99 18BR/LG O2 1/1 HEATER CONTROL
9 K127 18BR/OR OXYGEN SENSOR DOWNSTREAM RELAY CONTROL
10 K106 18VT/LB LEAK DETECTION PUMP SOLENOID CONTROL
11 V32 18VT/YL SPEED CONTROL SUPPLY
12 K342 16BR/WT ASD RELAY OUTPUT
13 - -
14 K107 18VT/WT LEAK DETECTION PUMP SWITCH SENSE
15 K25 18 DB/VT BATT TEMP SIGNAL
16 K199 18BR/VT O2 2/1 HEATER CONTROL
17 K90 18LB/TN ENGINE STARTER MOTOR RELAY CONTROL
18 - -
19 K31 18BR FUEL PUMP RELAY CONTROL
20 K70 18DB/BR EVAP PURGE RETURN
21 - -
22 - -
23 - -
24 B29 18DG/WT BRAKE SWITCH SIGNAL
25 K125 18BR/DG GEN SOURCE
26 N4 18DB/WT FUEL LEVEL SENSOR SIGNAL
27 D21 18WT/BR SCI TRANSMIT (PCM)
28 - -
29 D20 18WT/LG SCI RECEIVE (PCM)
30 D25 18WT/VT PCI BUS
31 - -
32 V37 18VT S/C SWITCH NO. 1 SIGNAL
